Convert HTML content to PDF format

Support access to PDF files on your Webpages

Making Web content available as PDF is one way to facilitate the dissemination of content. In some industries, providing access to print-formatted documents, such as employee benefit descriptions, is mandatory. The law actually dictates that summary plan descriptions (SPDs) be made available in print format even though the content may be provided online. Just printing the Webpage is not sufficient because the print format must include a table of contents with page number references.

To add such functionality to a Webpage, developers can convert the HTML content to PDF format; this article illustrates how. The method illustrated here to perform the conversion uses only open source components. Commercial products also support dynamic document generation. Adobe has the Document Server product line, for example; however, its cost is substantial. Using an open source solution mitigates the cost factor while adding source code transparency.

The conversion consists of three steps:

  1. Convert the HTML to XHTML
  2. Convert the XHTML document to XSL-FO (Extensible Stylesheet Language Formatting Objects) using an XSL stylesheet and an XSLT transformer
  3. Pass the XSL-FO document to a formatter to generate the target PDF document

This article demonstrates how to perform the translations using the command line interfaces provided by the tools and then introduces a Java program that uses the DOM (Document Object Model) interfaces.

Component versions

The code in this article was tested with the following versions:

ComponentVersion
JDK1.5_06
JTidyr7-dev
Xalan-J2.7
FOP0.20.5

Using the command line interfaces

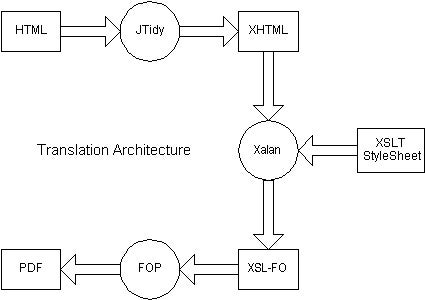

Each of the three steps consists of generating an output file from an input file. The inputs and outputs of the steps are shown in the figure below.

Translation

Using the three tools' command line interfaces allows for an easy way to get started. However, this approach is not suitable for a production-level system because of the temporary intermediate files that would be written to disk. This extra I/O would result in poor performance. Later in this article, the issue of temporary files becomes moot when the three tools are invoked by a Java program.

Step 1: HTML to XHTML

The first step is to translate the HTML file to a new XHTML file. Of course if the starting point for the conversion is already XHTML, then this step does not apply.

I used JTidy to perform the translation. JTidy is a Java port of the Tidy HTML parser. In the process of translating to XHTML, JTidy also adds missing close tags to create a well-formed XML document. I used the most recent version listed (r7-dev) on the SourceForge Website.

To run JTidy, use the following tidy.sh script:



#/bin/sh

java -classpath lib/Tidy.jar org.w3c.tidy.Tidy -asxml >

This script sets the CLASSPATH variable and invokes JTidy. To run JTidy, the input file is passed as a command line argument. By default, the generated XHTML is directed to standard output. The -modify switch can also be used to overwrite the input file. The -asxml switch directs JTidy to output well-formed XML as opposed to HTML.

The script is invoked as:

  tidy.sh hello.html hello.xml

And the files hello.html (input) and hello.xml (output) are shown here:



<html> <head> <title>Hello World </head> <body> <p> Hello World! </body> </html>

<!DOCTYPE html PUBLIC quot;-//W3C//DTD XHTML 1.0 Strict//EN" quot;http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns=quot;http://www.w3.org/1999/xhtml"> <head> <meta name=quot;generator" content="HTML Tidy, see www.w3.org" /> <title>Hello World </head> <body> <p>Hello World!</p> </body> </html>

Note that the <p> tag has a closing </p> tag in the XML file added by JTidy.

Step 2: XHTML to XSL-FO

Next, the XHTML is transformed to XSL-FO, a language for specifying the print format of XML documents. To achieve the transformation, I apply an XSL stylesheet processed by an XSLT transformer (Apache Xalan). The stylesheet I used as a starting point is xhtml2fo.xsl, provided by Antenna House, a company that sells a commercial formatter for XSL-FO.

The xhtml2fo.xsl stylesheet specifies how each of the HTML tags is to be translated to the corresponding sequence of XSL-FO formatting commands. For instance, in case of an HTML H2 tag, the translation is defined as:

   <xsl:template match="html:h2">
      <fo:block xsl:use-attribute-sets="h2">
        <xsl:call-template name="process-common-attributes-and-children"/>
      </fo:block>
    </xsl:template>

The above XSLT template is invoked every time an H2 tag is encountered in the HTML input stream. The html: prefix indicates that the H2 tag is in the HTML namespace. The stylesheet's namespaces are specified as attributes to the top-level xsl:stylesheet directive. Looking at the top of the xhtml2fo.xsl file, we see three namespaces specified. One for each of the XSL, XSL-FO, and HTML languages:

   <xsl:stylesheet version="1.0"
                    xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
                    xmlns:fo="http://www.w3.org/1999/XSL/Format"
                    xmlns:html="http://www.w3.org/1999/xhtml">...

The second line of the template

   <fo:block xsl:use-attribute-sets="h2">

causes an fo:block tag to be output, with the H2 attribute set to generate the attributes and values for the fo:block tag. An XSL-FO block is a region of text rendered based on the values specified for the block's attributes.

The attribute set for H2 is defined in the stylesheet as:

   <xsl:attribute-set name="h2">
        <xsl:attribute name="start-indent">10mm
        <xsl:attribute name="end-indent">10mm
        <xsl:attribute name="space-before">1em
        <xsl:attribute name="space-after">0.5em
        <xsl:attribute name="font-size">x-large
        <xsl:attribute name="font-weight">bold
        <xsl:attribute name="color">black
   </xsl:attribute-set>

The start-indent and subsequent attributes above are used to specify the formatted appearance of an H2 block. Using an attribute set makes it easy to change the appearance of all blocks in the PDF document that correspond to the same HTML input tag. Simply change the settings in the attribute set; the output of all translations that use the attribute set will change too.

The next directive in the translation calls the template named "process-common-attributes-and-children":

   <xsl:call-template name="process-common-attributes-and-children"/>

This template is defined in the stylesheet. Its purpose is to check for some common HTML attributes (i.e., lang, id, align, valign, style) and then generate the corresponding XSL-FO directives. To trigger the translation of any tags nested within the top-level H2 tag, the process-common-attributes-and-children template then calls:

   <xsl:apply-templates/>

Hence, if the input is

   <h2> Hello <em> there </em> </h2>

the <xsl:apply-templates/> inside the template for H2 would trigger the invocation of the template that translates the <em> tag.

The output of translating an H2 tag is:

   <fo:block start-indent="10mm" ...
        original H2 tag content
    </fo:block>

To apply the xhtml2f0.xsl, we invoke the Xalan transformer. The Unix script xalan.sh sets the CLASSPATH variable with the required jar files before calling Xalan:



#/bin/sh

export CLASSPATH='.;./lib/xalan.jar;./lib/xercesImpl.jar;./lib/xml-apis.jar;lib/serializer.jar'

java -classpath $CLASSPATH org.apache.xalan.xslt.Process -IN -XSL xhtml2fo.xsl -OUT -tt

Since Xalan requires an XML parser, the Apache Xerces parser and xml-api JARs are referenced in addition to xalan.jar. All of the jar files are bundled with the Xalan distribution.

To create an XSL-FO file by applying the stylesheet to the XHTML input, invoke the script:

   xalan.sh  hello.xml hello.fo

I like to use the trace option (-tt) with Xalan to display a trace of the templates that are applied. The file hello.fo is shown below:



<?xml version="1.0" encoding="UTF-8"?>

<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:html="http://www.w3.org/1999/xhtml" writing-mode="lr-tb" hyphenate="false" text-align="start" role="html:html">

<fo:layout-master-set> <fo:simple-page-master page-width="auto" page-height="auto" master-name="all-pages"> <fo:region-body column-gap="12pt" column-count="1" margin-left="1in" margin-bottom="1in" margin-right="1in" margin-top="1in"/> <fo:region-before display-align="before" extent="1in" region-name="page-header"/> <fo:region-after display-align="after" extent="1in" region-name="page-footer"/> <fo:region-start extent="1in"/> <fo:region-end extent="1in"/> </fo:simple-page-master> </fo:layout-master-set>

<fo:page-sequence master-reference="all-pages"> <fo:title>Hello World <fo:static-content flow-name="page-header"> <fo:block font-size="small" text-align="center" space-before="0.5in" space-before.conditionality=;"retain"> Hello World </fo:block> </fo:static-content>

<fo:static-content flow-name="page-footer"> <fo:block font-size="small" text-align="center" space-after="0.5in" space-after.conditionality=quot;retain"> - <fo:page-number/> - </fo:block> </fo:static-content>

<fo:flow flow-name="xsl-region-body"> <fo:block role="html:body"> <fo:block space-before="1em" space-after="1em" role="html:p"> Hello World! </fo:block> </fo:block> </fo:flow>

</fo:page-sequence>

</fo:root>

Step 3: XSL-FO to PDF

The third and final step is to pass the XSL-FO document to a formatter that can generate PDF. I used Apache FOP (Formatting Objects Processor). FOP partially implements the XSL-FO standard and best supports the PDF output format. There is nascent support for Postscript, and support for Microsoft's RTF (rich text format) is planned. The FOP distribution contains the shell script fop.sh/fop.bat that takes an XSL-FO file as input and generates the specified PDF output file.

The Unix script can be run, for example, by:

   fop.sh hello.fo hello.pdf

The only prerequisite is to set the environment variable used by the script for the FOP home directory's path.

The file hello.pdf contains the output from FOP and is included in this article's source code, which can be downloaded from Resources.

Since FOP doesn't currently fully implement the XSL-FO standard, there are some limitations. The subset of the standard that is supported is described in detail in the compliance section of the FOP Website.

Java program

Utilizing the DOM APIs of the three tools used in the steps above, I'll now present a Java program that requires two command line arguments (HTML input file and stylesheet) and creates a corresponding PDF. No temporary files are created.

First the program creates an InputStream for the HTML file. The InputStream object is then passed to JTidy.

JTidy has method parseDOM(), which is called to obtain the output XHTML content as a Document object:



public static void main(String[] args) {

// open file if (args.length != 2) { System.out.println("Usage: Html2Pdf htmlFile styleSheet"); System.exit(1); }

FileInputStream input = null; String htmlFileName = args[0]; try { input = new FileInputStream(htmlFileName); } catch (java.io.FileNotFoundException e) { System.out.println("File not found: " + htmlFileName); }

Tidy tidy = new Tidy(); Document xmlDoc = tidy.parseDOM(input, null);

XML namespaces are not supported in the JTidy's DOM implementation; hence, the rules in the Antenna House stylesheet must be modified to use the default namespace. For example, instead of

   <xsl:template match="html:h2">
      <fo:block xsl:use-attribute-sets="h2">
        <xsl:call-template name="process-common-attributes-and-children"/>
      </fo:block>
    </xsl:template>

the rule is changed to

   <xsl:template match="h2">
      <fo:block xsl:use-attribute-sets="h2">
        <xsl:call-template name="process-common-attributes-and-children"/>
      </fo:block>
    </xsl:template>

This change must be applied to all templates in xhtml2f0.xsl because the Document object created by JTidy has <html> as the root tag, as opposed to:

 <html xmlns=quot;http://www.w3.org/1999/xhtml">

The modified version of xhtml2fo.xsl is included in this article's source code.

Next, the method xml2FO() calls Xalan programmatically to apply the stylesheet to the DOM object created by JTidy:

   Document foDoc = xml2FO(xmlDoc, args[1]);

Method xml2FO() first calls getTransformer() to obtain a Transformer object for the specified stylesheet. The Document that represents the result of the transform is then returned:



private static Document xml2FO(Document xml, String styleSheet) {

DOMSource xmlDomSource = new DOMSource(xml); DOMResult domResult = new DOMResult();

Transformer transformer = getTransformer(styleSheet);

if (transformer == null) { System.out.println("Error creating transformer for " + styleSheet); System.exit(1); } try { transformer.transform(xmlDomSource, domResult); } catch (javax.xml.transform.TransformerException e) { return null; } return (Document) domResult.getNode();

}

The main method then opens a FileOutputStream using the same prefix as the HTML input file. The result of calling method fo2PDF() is then written to the OutputStream:

   String pdfFileName = htmlFileName.substring(0, htmlFileName.indexOf(".")) + ".pdf";
    try {
        OutputStream pdf = new FileOutputStream(new File(pdfFileName));
        pdf.write(fo2PDF(foDoc));
    }
    catch (java.io.FileNotFoundException e) {
        System.out.println("Error creating PDF: " + pdfFileName);
    }
    catch (java.io.IOException e) {
        System.out.println("Error writing PDF: " + pdfFileName);
    }

Method fo2PDF() creates a FOP driver object using the XSL-FO Document created by the transform and a ByteArrayOutputStream. The PDF is generated by invoking Driver.run, and the result is returned as a byte array:



private static byte[] fo2PDF(Document foDocument) {

DocumentInputSource fopInputSource = new DocumentInputSource( foDocument);

try {

ByteArrayOutputStream out = new ByteArrayOutputStream(); Logger log = new ConsoleLogger(ConsoleLogger.LEVEL_WARN);

Driver driver = new Driver(fopInputSource, out); driver.setLogger(log); driver.setRenderer(Driver.RENDER_PDF); driver.run();

return out.toByteArray();

} catch (Exception ex) { return null; } }

The full source of Html2Pdf.java is included in this article's source code.

Performing the entire process using the DOM APIs is much faster than using the command line interfaces since no intermediate files are written to disk. This approach can also be integrated into a server that can handle multiple concurrent requests for translating HTML into PDF.

I previously used the Java program outlined here as a starting point for integrating on-the-fly PDF document generation into a Web application. Since the document generation is dynamic, there are no synchronization issues between a Webpage and its corresponding PDF version since the PDF documents are not stored on the server.

Conclusion

In summary, I've illustrated how to convert HTML to PDF using only open source components. While this approach is attractive due to price and source code availability, there are tradeoffs. One could also find commercial components that provide more complete implementation of the standards.

For instance, FOP is currently at version .91 and does not fully implement the XSL-FO standard. However, richer support is implemented for PDF as opposed to the other output formats.

When starting a document generation project, one must consider document format requirements and compare them against the features implemented in the available components. This should help guide the decision process.

Nick Afshartous has been a professional Java programmer for seven years. Currently, he is a senior architect/developer for a software company that sells Web-based human resource applications. He has a Ph.D. in computer science.
