Server-side Java: Patterns for flexible initialization, Part 1

A reflective approach to initializing your server-side system

Your Java server is almost complete: you've tested the code thoroughly, and everything seems to be running smoothly. It's time to wrap up your project and take care of the small details required to ship the code. Usually, one of those small details is creating and utilizing an application configuration file to store all the data relevant to the system setup. The code has to ship within an hour, so you hack something together that reads the configuration file and interprets its settings. A year later when you look back at the code, the sound of silent weeping starts to emanate from the depths of your professional programming soul.

Creating a simple but reusable process for reading and interpreting configuration information requires some thought. While preserving Java's simplicity, the process must be specialized enough to handle most steps in the application setup. Briefly, the setup/startup process can be described as the creation of at least one object of a class given in the configuration file, with constructor parameter values provided within the file.

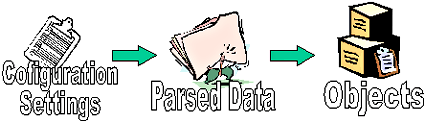

Figure 1. The setup process flow

The two process steps, illustrated with the green arrows in Figure 1, are what you must implement to instantiate the startup object from the parameters in the configuration file. Thus, you need to implement the two process steps in a general fashion. Your goal is to be able to retain the setup process or pattern in future releases of your application software. Simply create a class (or upgrade an existing one) that should be used as the application initialization class. Such a class has only one purpose: to set up the application and to launch any side processes required to set the application server in standard operating mode.

Figure 2. The setup process flow and components

The most general entity in Java tends to be the interface, which can be implemented in a variety of ways without breaking the initial system design. Striving for generality in software components, the ConfigFileParser and ObjectFactory steps shown in Figure 2 could be Java interfaces and therefore implemented in myriad ways. Of course, this design would allow the setup subapplication to be as general as possible; if you suddenly feel an urge to change the format of the configuration file (say, to XML, CHTML, or some equally buzzword-compliant form of notation), just create a new ConfigFileParser implementation and plug it in to the application.

Now that the main setup tasks are defined, let's take a look at one possible system design. The overall design could, of course, be enhanced to accommodate powerful features. But for the purposes of this article, it's important to study the process as a whole, as well as study the collaboration between the ConfigFileParser and the ObjectFactory. Let's take a look at the entire subsystem illustrated in Figure 3, since it is fairly small:

Figure 3. The partial class diagram of the setup system

Systems that perform behind-the-scenes setup tasks should hide as much of the underlying structure as possible from the ultimate caller. By encapsulating most of the structure, few limitations need to be imposed on the final (and evolving) setup system. Thus, the only method that must be called to initialize the entire system is the doSetup() method of the Startup class. The process described above is then executed in the doSetup() method, as shown in Figure 4:

Figure 4. The doSetup() sequence diagram

The parseConfigFile() method is essentially a small parser whose algorithm could be exchanged at any point to handle different configuration file types and structures. By delegating the task of interpreting the information in the configuration file to another class, the system as a whole becomes more robust and may better withstand changes in its environment (the configuration file).

Let's take a look at a simple ConfigFileParser that handles old-style Java property configuration files:

Listing 1. SimpleConfigParser.java

// Copyright (c) 2000 jguru.com
// All rights reserved.
package com.jguru.initHandler;
import java.util.Map;
import java.util.HashMap;
import java.util.Collections;
import java.io.File;
import java.io.FileReader;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.BufferedReader;
/**
 * Implementation of the ConfigFileParser interface that reads and parses
 * old-style Java Properties files.
 *
 * @author Lennart Jörelid, jGuru Europe
 * @version $Id$
 * @since January 2000
 */
public class PropertyConfigParser implements ConfigFileParser
{
  /**
    * Parses an old-style Java configuration file, constructed of
    * key=value pairs. The result is packaged in a map.
    *
    * Lines starting with "#" or " " (white space) characters are
considered
    * comments, and are disregarded by this parser method.
    *
    * @param absFilePath The absolute file path of the config file.
    * @return All parameters in the config file in a parsed format.
    */
   public Map parseConfigFile(String absFilePath) throws StartupException
   {
       // Check sanity
       File configFile = new File(absFilePath);(!configFile.exists() || !configFile.canRead())
       throw new StartupException("[parseConfigFile]: Config file '
" + absFilePath
         + "' nonexistent or unreadable.");
       // Open a Reader to the config file
       BufferedReader in = null;
       try
       {
          in = new BufferedReader(new FileReader(configFile));       catch(FileNotFoundException ex)
       {
          // We should never end up here, since
          // we already checked that the readable config file existed...
          throw new StartupException("[parseConfigFile]: Guru
meditation; Config file '"
                        + absFilePath + "' maybe not found.");
       }
       // Create the resulting map and populate it
       // with the entries in the configuration file.
       Map aMap = Collections.synchronizedMap(new HashMap());
       // Read all lines in the config file
       while(true)           try
           {
              String aLine = in.readLine();
              if (aLine == null) break;
              // Disregard comments that reside on lines starting
              // with white space or a pound sign.
              if(! aLine.startsWith("#") || ! aLine.startsWith
(" "))
              {
                  // This is a config directive -- not a comment.
                  // Split the line/string at the index of the "
=".
                  int divisor = aLine.indexOf("=");
                  if (divisor != -1)
                  {
                      // Create a new entry in the return map
                      aMap.put(
                           aLine.substring(0, divisor),                 //
The key
                           aLine.substring(divisor + 1, aLine.length()) //
The value
                           );
                  }
              }
           }
           catch(IOException ex)
           {
              throw new StartupException("[parseConfigFile]: " +
ex);
           }
       }
       return aMap;
   }
}

The above listing is a very simple parser method; it simply reads through all the lines in the configuration file, discarding the lines starting with "#" or " " (white space) and treating all other lines as configuration directives. The results are returned in the form of a map, which the ObjectFactory can use to automate the creation of the startup objects.

Of course, the ConfigFileParser implementation is written for one particular configuration file syntax. Note that the sample configuration file below has a very rudimentary syntax in which the system root class is com.jguru.initHandler.TestClass and all the arguments to that class's constructor are provided as a pair of two keys: the constructor parameter [argX] and its corresponding type [typeX].

Listing 2. Sample configuration file

############################################
#                                          #
# jGuru Sample Configuration file          #
#                                          #
############################################
startupClass=com.jguru.initHandler.TestClass
arg0=A custom config string
type0=java.lang.String
arg1=42
type1=java.lang.Integer

Thus, the equivalent Java statement that you should extract from the configuration file above is new com.jguru.initHandler.TestClass("A custom config string", 42); calling the constructor public com.jguru.initHandler.TestClass(String, int);. The ObjectFactory is responsible for manufacturing the object in this fashion.
